Description
Lincoln 1130-000-U Conveyor Belt Pizza Oven
Lincoln Impinger II Express Conveyor Pizza Oven, electric, front loading, single-deck, single conveyor belt, glass access window, FastBake technology optional, NSF, UL, CSA, 120/208v/60/1, 48.0 amps, 10.0 kW
The Impinger II Express is designed for applications where demand is high and floor space is limited. The 1130-000-U Lincoln Impinger II Express Electric Conveyor Oven is one of its 1100 Series. The 18 in. wide conveyor belt and 28 in. wide baking chamber give this oven the capacity of one to two full-size deck ovens. Plus, the Impinger II oven can be stacked two high for maximum capacity and flexibility. Choose quantity of 2 for double stack of ovens. This is an electric baking/finishing oven which is self-contained and conveyorized. Temperature is adjustable for 250°F (121°C) to 575°F (302°C). Conveyor speed is reversible and adjustable from 1 minute to 30 minutes cooking time. FastBake Technology reduces cook time by up to an additional 35% with no food quality loss or noise increase. Front door is solid with an access opening to allow product to be placed on the moving conveyor inside the baking chamber when a shorter cook cycle is desired. Air distribution fingers are removable through the front door for easy cleaning. Crumb pans are located below the conveyor belt outside the baking chamber. Includes Oven Start-up/check-out by Manitowoc STAR Authorized Service Agent.
Oven only included. A stand, either portable, fixed or counter mount, is a compulsory purchase with this oven unless stacking onto an existing Lincoln oven. The Lincoln Impinger II will be shipped with radiant finger setup unless otherwise requested. It also has a front loading conveyor and removable door which make for easy cleaning.
Options (sold separately) include Columnating Panels: Bottom Panels & Top Panels (#1542 with #1544 recommended for Pizza), take-off shelves, full close-off plate, half close-off plate, flexible gas connector, heat shield. Split Belt Option is now available for new Lincoln Impingers… Specify when ordering! The Lincoln 1130-000-U Electric Conveyor Oven has 120/208V.
Benefits:
Faster bake times improve time of service
Advanced Air Impingement Technology enhances bake quality and uniformity
Optional FastBake Technology reduces bake time 15-30%
Front removable conveyor for improved cleaning in tight spaces
Improved product flow during cooking reduces operation costs
Research and Applications support for continued operational success
Welbilt Star service is committed to ongoing customer satisfaction
No need for expensive, noisy, energy consuming ventilation systems (ventless models only)
Standard Features:
Stackable up to three (3) oven cavities high.
18 (457 mm) wide, 56 (1422 mm) long conveyor belt with product stop.
28 (711 mm) baking chamber.
Temperature adjustable from 250°F (121°C) to 575°F (302°C).
Conveyor speed is adjustable from one (1) minute to thirty (30) minutes cooking time.
Front-loading access door with cool handle.
Customer-specific setups give customer great results.
Direct conveyor drive is powered by an AC motor.
Stainless Steel top, front and sides.
Oven start-up/check-out by Enodis STAR agent included in price.
Manufacturer Warranty:
One year parts & labor warranty
Certifications:
NSF
UL
CSA

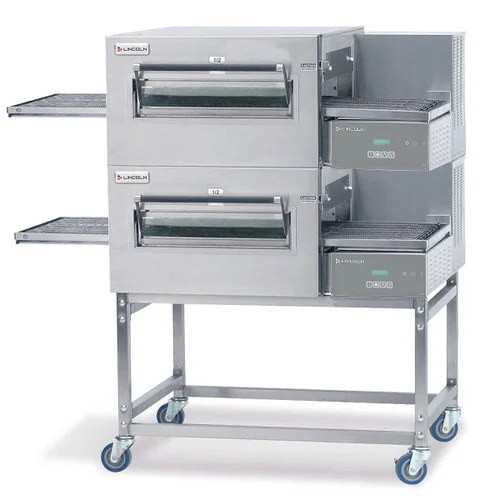

For reference only, the image shown is an 1100 Series Double Stacked Oven. It may slightly vary and some accessories may not be included. Please read the product description and specification sheet carefully for complete details.
